portable surface roughness testers



w/Bluetooth Data Output!

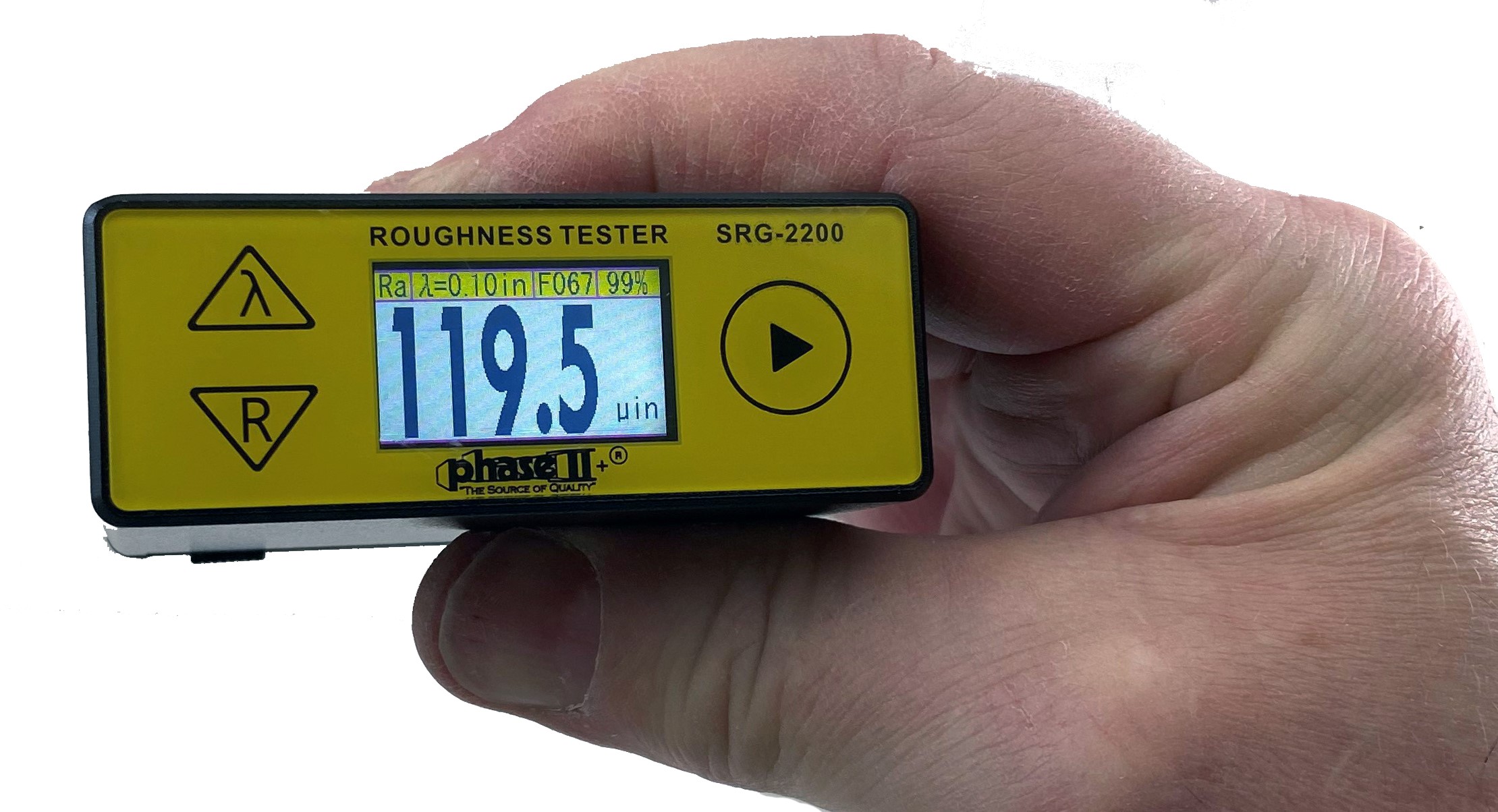

The New Phase II SRG-2200 Mini Surface Roughness Tester is a next generation of surface roughness tester developed by the Phase II Metrology Group that features high accuracy, a wide range of application, simple operation and stable performance. It is widely applicable in surface roughness testing all kinds of metals and non-metals.

Large memory with data output via Bluetooth.


The 1.14” IPS TFT display shows choice of surface roughness parameter Ra, Rz, Rq and Rt at the touch of a button, combined with the selected cutoff length. External calibration of the surface roughness value is possible by means of a built-in calibration feature which makes adjustment of this instrument very easy. Data output via Bluetooth makes saving surface roughness results fast and easy.


The easy to use SRG-2200 surface roughness tester operates on various surfaces, not only flat but also outer cylinder, outer cone, grooves, and recesses greater than 80x 30mm. The areas of application are wide-spread. It is suitable for inspection departments, quality control, on the shop floor during machining, during assembly, and on site.


The PHASE II SRG-2200 surface roughness tester comes complete with a compact durable carrying case, surface roughness standard, data output software and instruction manual.

Specifications:


Roughness parameter

Ra, Rms(Rq), (ISO), Rt, Rz (DIN)

Measuring range

Ra: 0.05-10.0mm  / Rz 0.1-50mm

Rms: 0.05-10.0mm  / Rt: 0.1-50mm

Display Type

1.14” IPS TFT

Cut-off lengths

0.01in., 0.03in., 0.10in                (0.25, 0.80, 2.50mm)

Filter

Gauss Digital

Tracing length

0.23in  (6mm)

Evaluation Length

1.25mm, 4.0mm, 5.0mm

Tracing speed

0.04in/second  (1.0mm/second)

Accuracy

+/- 12%  of actual Value

Pick-up stylus

Piezo-electric

Tracer tip

Diamond, radius 10mm +- 2.5mm

Memory / Transmission

500 Values / Bluetooth

Operating temperature

32-104 degrees F  (0-40 degrees C)

Power

1pc 1.5v AA Battery

Contact force on probe

<0.5N

Static measuring force of sensor stylus

<0.16N

Dimensions

73x28x62mm

Weight

0.5lbs   (220g)

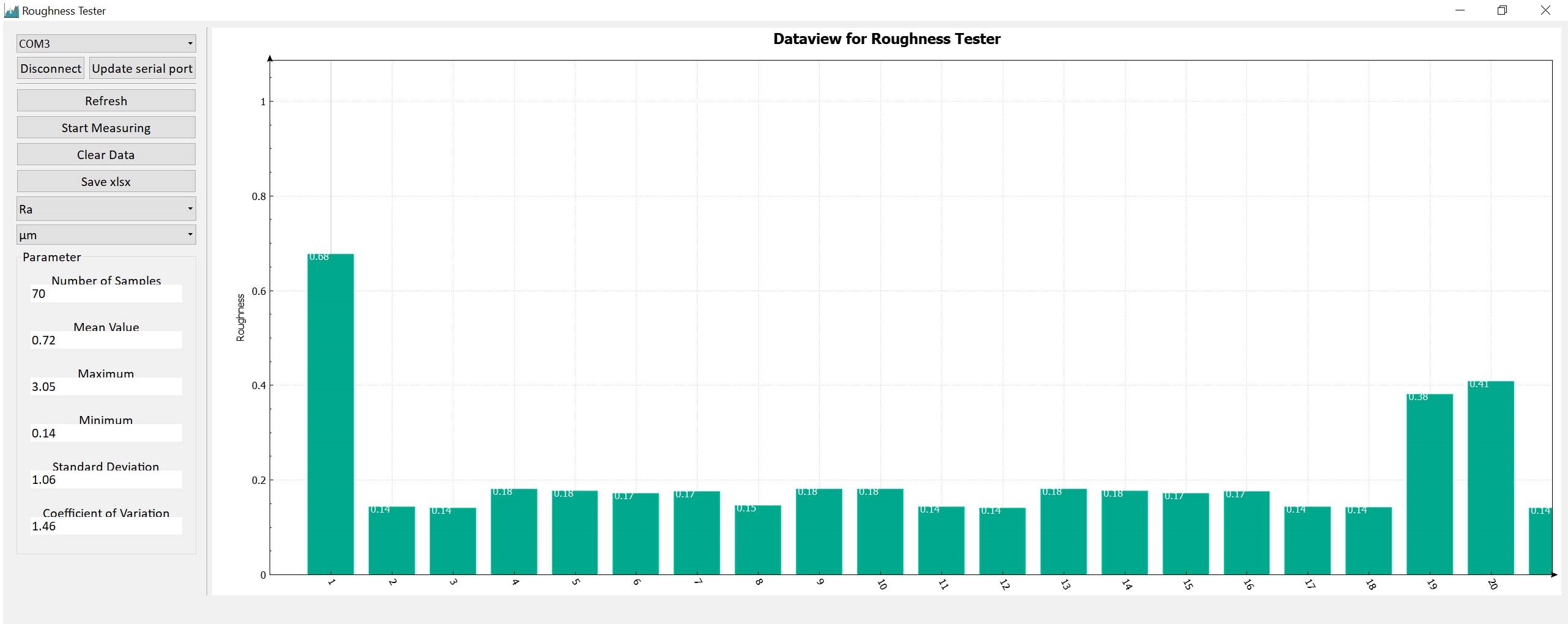

Data Output Software is Included!

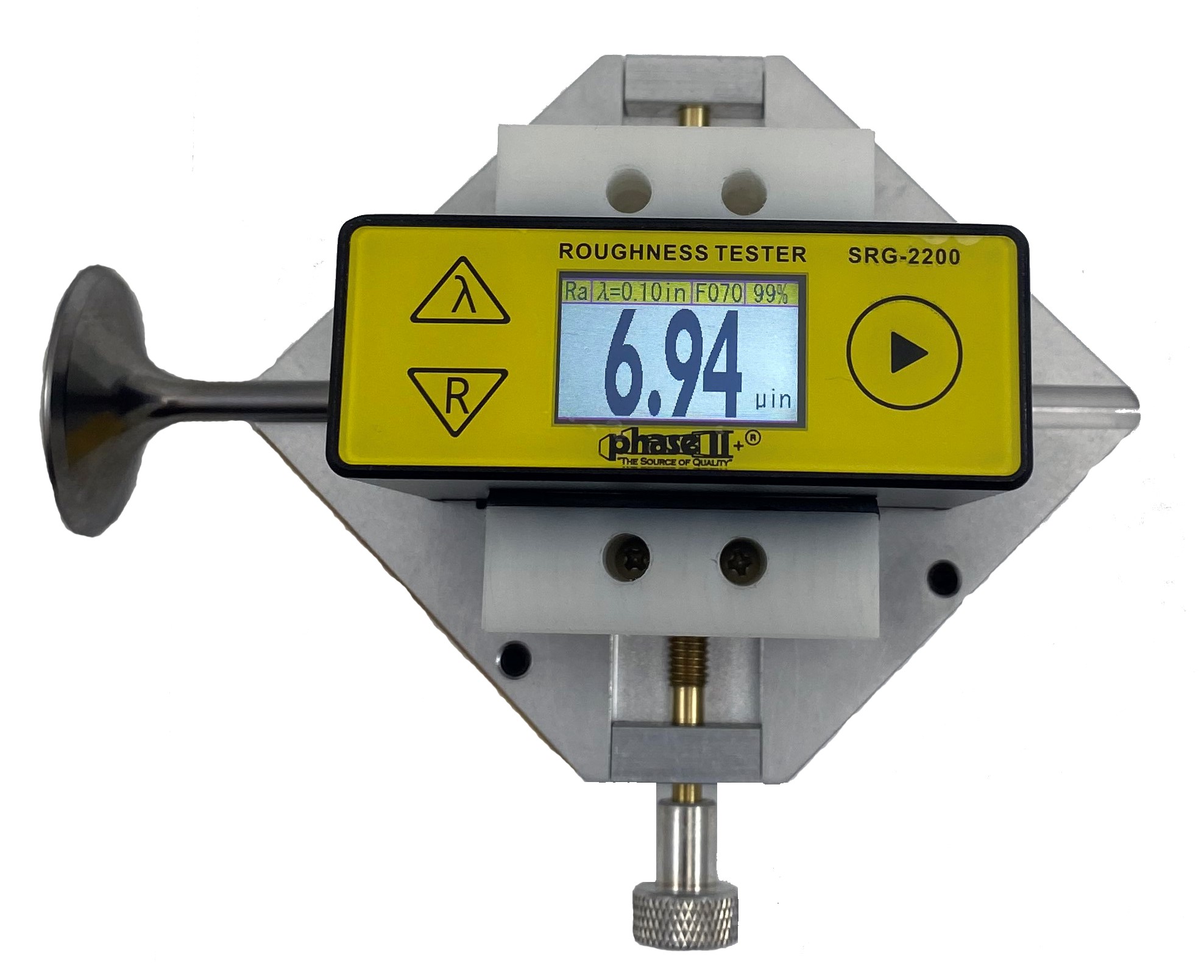

Shown w/Optional Vise

Parameters: Ra, Rms, Rt and Rz
